Self-Lubricating Center Flange Bronze Bushings (MPCZ & MPCTZ Series)

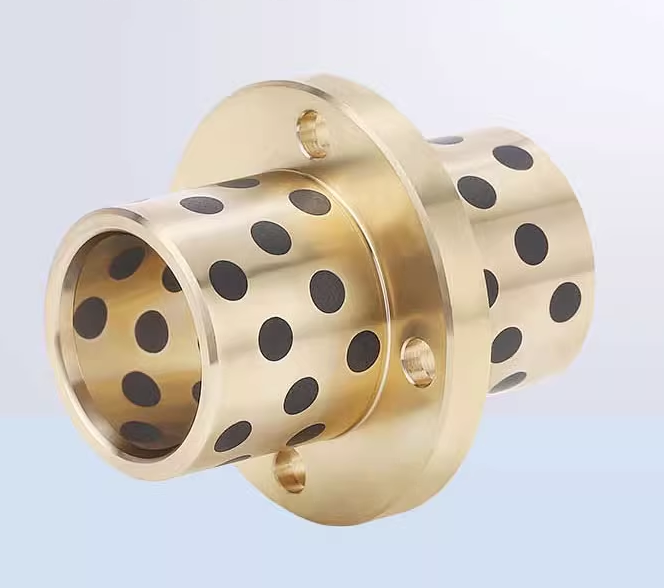

A detailed view of the MPC7 round center flange and MPCTZ cut-side center flange graphite bronze bushings.
Engineered for precise location and guidance, the MPCZ and MPCTZ series of oilless bushings feature a uniquely positioned central flange. These self-lubricating components are manufactured from a single piece of high-strength bronze with embedded solid graphite plugs, providing a maintenance-free solution for complex mechanical assemblies like die sets and molds.
The center flange design acts as a robust locating element, allowing guide posts or shafts to pass through both sides while maintaining a fixed central position. This simplifies design, reduces component count, and ensures high-performance, wear-resistant operation without the need for grease or oil.
Center Flange Mounting Options
MPCZ Series (Round Center Flange)
The MPCZ model, with its full circular center flange, is the standard choice for applications requiring balanced, secure mounting. It is ideal for locating stripper plates and other components in die sets where sufficient space allows for a round flange.
MPCTZ Series (Cut-Side Center Flange)
The MPCTZ model features a trimmed, space-saving flange profile. This design is essential for compact assemblies where the bushing must be mounted close to other elements or near an edge, preventing interference from a full flange.
Key Advantages
- Precise Mid-Point Location: The integral center flange ensures accurate, fixed positioning of guided components like stripper plates.
- Maintenance-Free & Clean: Solid graphite lubrication eliminates the need for oil and grease, ideal for cleanroom or contamination-sensitive applications.
- Simplified Design: A single component provides both bearing and locating functions, reducing complexity and assembly time.
- High Performance & Durability: Cast bronze construction offers high load capacity and excellent resistance to wear and high temperatures.
- Secure Bolt-On Installation: Both models are designed for a secure bolted assembly, preventing rotation and ensuring stability.

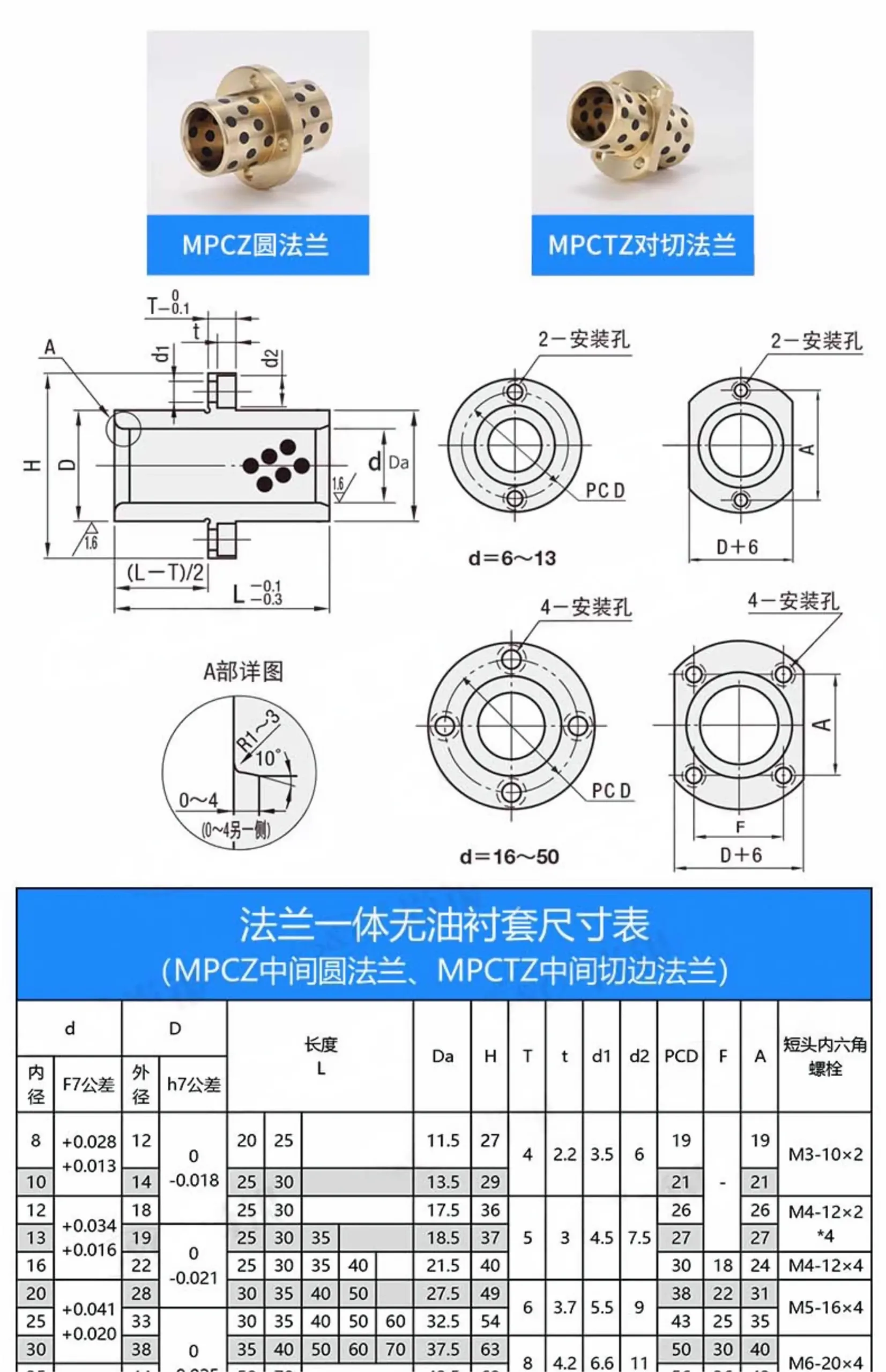

Technical Specification Table – MPCZ & MPCTZ Series
| Dimensions (mm) | Flange & Mounting (mm) | Recommended Screw | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d (Inner Ø) F7 | D (Outer Ø) h7 | L (Length) | Da | H | T | t | d1 | d2 | PCD | F | A | Socket Head Cap Screw |
| 8 | 12 | 20, 25 | 11.5 | 27 | 4 | 2.2 | 3.5 | 6 | 19 | – | 19 | M3-10×2 |
| 10 | 14 | 25, 30 | 13.5 | 29 | 21 | 21 | ||||||
| 12 | 18 | 25, 30 | 17.5 | 36 | 5 | 3 | 4.5 | 7.5 | 26 | 26 | M4-12×2 (*4) | |
| 13 | 19 | 25, 30, 35 | 18.5 | 37 | 27 | 27 | ||||||
| 16 | 22 | 25, 30, 35, 40 | 21.5 | 40 | 30 | 18 | 24 | M4-12×4 | ||||
| 20 | 28 | 30, 35, 40, 50 | 27.5 | 49 | 6 | 3.7 | 5.5 | 9 | 38 | 22 | 31 | M5-16×4 |
| 25 | 33 | 30, 35, 40, 50, 60 | 32.5 | 54 | 43 | 25 | 35 | |||||
| 30 | 38 | 35, 40, 50, 60, 70 | 37.5 | 63 | 50 | 30 | 40 | M6-20×4 | ||||
| 35 | 44 | 35, 40, 50, 60, 70 | 42.5 | 68 | 8 | 4.2 | 6.6 | 11 | 56 | 36 | 48 | |
| 40 | 50 | 40, 50, 60, 70, 80 | 48.5 | 78 | 66 | 42 | 58 | M8-25×4 | ||||
| 50 | 62 | 50, 60, 70, 80, 100 | 60.5 | 92 | 10 | 5.5 | 9 | 14 | 78 | 52 | 70 | M10-30×4 |
Precision Locating Bushings, Engineered for You
Our team is ready to assist you in selecting the ideal center flange bushing for your specific design needs.
