JFB / MPFZ Self-Lubricating Flanged Bronze Bushings

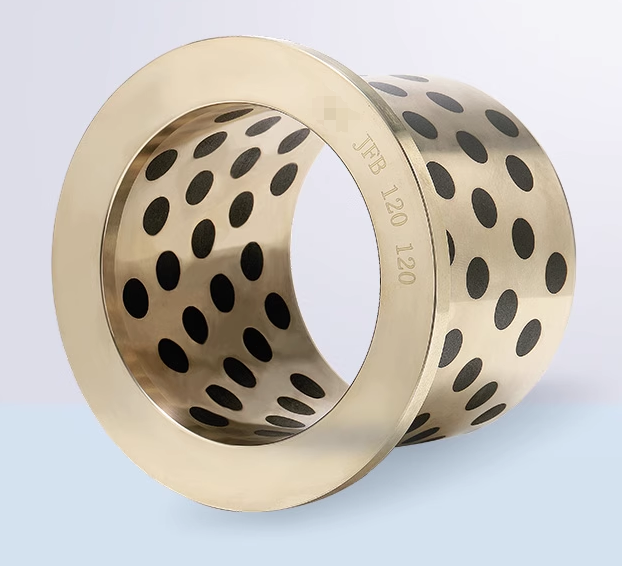

A detailed image of a JFB flanged graphite bronze bushing, also known as a shoulder bearing
The JFB (MPFZ) series offers a versatile, all-in-one solution for applications requiring both radial and axial support. These flanged sleeve bearings, also known as shoulder bushings, are constructed from a high-strength cast bronze base with solid graphite lubricant plugs embedded throughout the bearing surface. This design ensures continuous, maintenance-free self-lubrication for the entire life of the component.
The integral flange provides a simple and effective method for axial positioning and for carrying light thrust loads, making it an ideal choice for a wide variety of industrial and mechanical applications.
Key Advantages of JFB Flanged Bushings
- Combined Load Support: The single-piece design efficiently handles both radial loads on the sleeve and axial loads on the flange face.
- Maintenance-Free Operation: Solid graphite lubricant eliminates the need for oil or grease, reducing downtime and preventing system contamination.
- Compact & Space-Saving: The integral flange removes the need for external thrust washers, simplifying assembly and saving valuable space.
- Precise Installation: The flange acts as a positive stop during press-fit installation, ensuring accurate and repeatable positioning.
- Superior Durability: Cast bronze construction delivers high load capacity and excellent resistance to wear, shock, and corrosion.

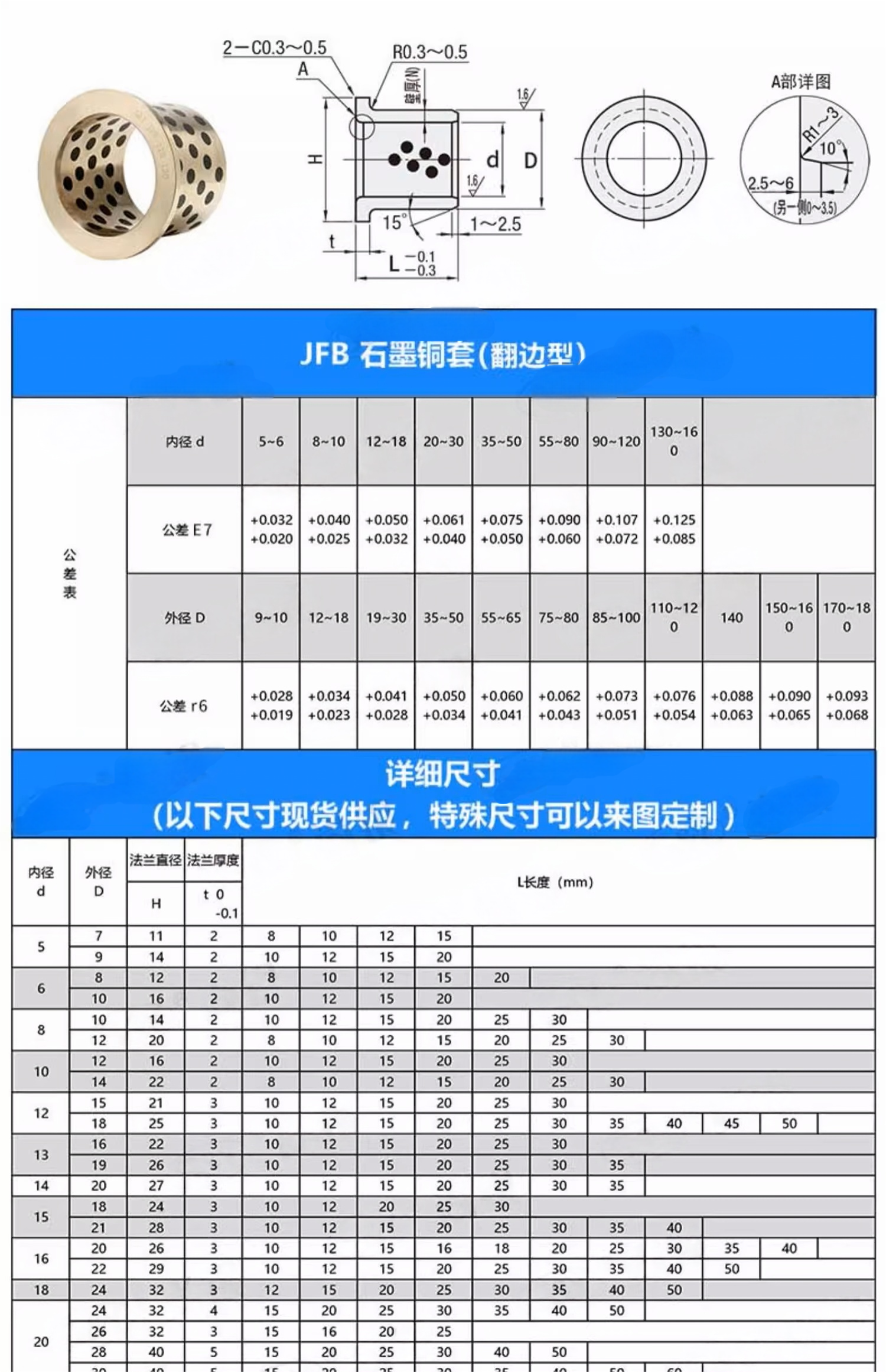

Technical Specifications – Tolerances
| Diameter Range (mm) | 5~6 | 8~10 | 12~18 | 20~30 | 35~50 | 55~80 | 90~120 | 130~160 |
|---|---|---|---|---|---|---|---|---|
| Inner Diameter (d) Tolerance E7 | +0.032 +0.020 | +0.040 +0.025 | +0.050 +0.032 | +0.061 +0.040 | +0.075 +0.050 | +0.090 +0.060 | +0.107 +0.072 | +0.125 +0.085 |
| Outer Diameter (D) Tolerance r6 | +0.028 +0.019 | +0.034 +0.023 | +0.041 +0.028 | +0.050 +0.034 | +0.060 +0.041 | +0.062 +0.043 | +0.073 +0.051 | +0.076 +0.054 |
Detailed Dimensions & Available Sizes
Customization Available: The sizes below are available from stock in various lengths. If your required size is not listed, we can manufacture it according to your drawings.
| d (Inner Ø) | D (Outer Ø) | H (Flange Ø) | t (Flange Thick.) | Available Lengths (L) in mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 7 | 11 | 2 | 8 | 10 | 12 | 15 | ||||||
| 5 | 9 | 14 | 2 | 10 | 12 | 15 | 20 | ||||||
| 6 | 8 | 12 | 2 | 8 | 10 | 12 | 15 | 20 | |||||
| 6 | 10 | 16 | 2 | 10 | 12 | 15 | 20 | ||||||
| 8 | 10 | 14 | 2 | 10 | 12 | 15 | 20 | 25 | 30 | ||||
| 8 | 12 | 20 | 2 | 8 | 10 | 12 | 15 | 20 | |||||
| 10 | 12 | 16 | 2 | 10 | 12 | 15 | 20 | 25 | 30 | ||||
| 10 | 14 | 22 | 2 | 8 | 10 | 12 | 15 | 20 | |||||
| 12 | 15 | 21 | 3 | 10 | 12 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| 12 | 18 | 25 | 3 | 10 | 12 | 15 | 20 | 25 | 30 | ||||
| 13 | 16 | 22 | 3 | 10 | 12 | 15 | 20 | 25 | 30 | 35 | |||
| 13 | 19 | 26 | 3 | 10 | 12 | 15 | 20 | 25 | 30 | ||||
| 14 | 20 | 27 | 3 | 10 | 12 | 15 | 20 | 25 | 30 | 35 | |||
| 15 | 18 | 24 | 3 | 10 | 12 | 15 | 20 | 25 | 30 | 35 | 40 | ||
| 15 | 21 | 28 | 3 | 10 | 12 | 15 | 20 | 25 | |||||
| 16 | 20 | 26 | 3 | 10 | 12 | 15 | 16 | 18 | 20 | 25 | 30 | 35 | 40 |
| 16 | 22 | 29 | 3 | 10 | 12 | 15 | 20 | 25 | 30 | 35 | 40 | ||
| 18 | 24 | 32 | 3 | 12 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | ||
| 20 | 24 | 32 | 3 | 15 | 16 | 20 | 25 | 30 | |||||
| 20 | 26 | 32 | 3 | 15 | 16 | 20 | 25 | ||||||
| 20 | 28 | 40 | 5 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | ||
| 20 | 30 | 40 | 5 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | ||
| 25 | 28 | 40 | 5 | 20 | 25 | 30 | 40 | 50 | 60 | ||||
