MPKZ Counterbore Thrust Flange Oilless Bushing
MPKZ Counterbore Thrust Flange Oilless Bushing (ID 6-50mm)
Description
MPKZ Counterbore Thrust Flange Oilless Bushing
The Ultimate Flush-Mount Solution for High-Load, Zero-Maintenance Applications.

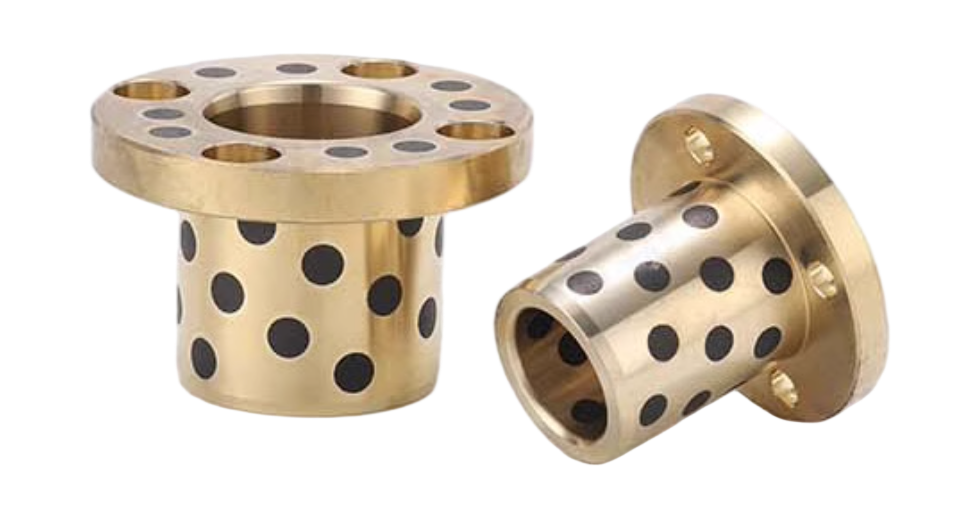

MPKZ Counterbore Thrust Flange Oilless Bushing
MPKZ Counterbore Thrust Flange Oilless Bushing
Why Choose the MPKZ Series?
Maintenance-Free Operation
Embedded solid graphite provides continuous self-lubrication, eliminating the cost and downtime of manual greasing.
Secure Flush-Mount Design
The counterbored flange allows screw heads to sit flush, preventing snags and saving critical space in compact designs.
Extreme Load Capacity
The high-strength bronze alloy base is engineered to withstand heavy radial loads and significant impacts without failure.
Integrated Thrust & Radial Support
The single-piece flanged design handles both radial and axial forces, simplifying your assembly and reducing component count.
Technical Specifications
Standard dimensional specifications for the MPKZ Series. All units are in millimeters (mm).

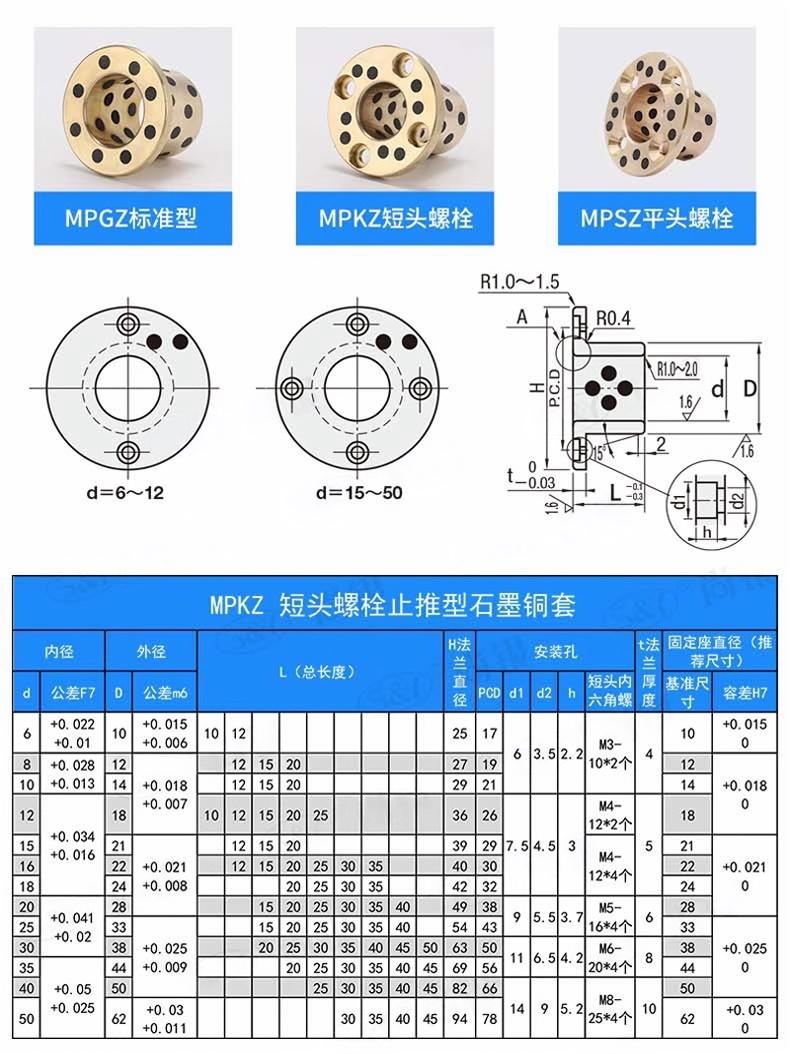

| Inner Dia. (d) F7 | Tolerance | Outer Dia. (D) m6 | Tolerance | Length (L) | H | PCD | d1 | d2 | h | t | Seating Dia. (Rec.) H7 | Tolerance | Rec. Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | +0.022/+0.01 | 10 | +0.015/+0.006 | 10, 12 | 25 | 17 | 6 | 3.5 | 2.2 | 4 | 10 | +0.015/0 | M3-10*2pcs |
| 8 | +0.028 | 12 | 12, 15, 20 | 27 | 19 | 12 | |||||||
| 10 | +0.013 | 14 | +0.018/+0.007 | 12, 15, 20 | 29 | 21 | 14 | +0.018/0 | |||||
| 12 | 18 | 10, 12, 15, 20, 25 | 36 | 26 | 7.5 | 4.5 | 3 | 5 | 18 | M4-12*2pcs | |||
| 15 | +0.034/+0.016 | 21 | 12, 15, 20 | 39 | 29 | 21 | |||||||
| 16 | 22 | +0.021/+0.008 | 12, 15, 20, 25, 30, 35 | 40 | 30 | 22 | +0.021/0 | M4-12*4pcs | |||||
| 18 | 24 | 20, 25, 30, 35 | 42 | 32 | 24 | ||||||||
| 20 | 28 | 15, 20, 25, 30, 35, 40 | 49 | 38 | 9 | 5.5 | 3.7 | 6 | 28 | M5-16*4pcs | |||
| 25 | +0.041/+0.02 | 33 | 15, 20, 25, 30, 35, 40 | 54 | 43 | 33 | |||||||
| 30 | 38 | +0.025/+0.009 | 20, 25, 30, 35, 40, 45, 50 | 63 | 50 | 11 | 6.5 | 4.2 | 8 | 38 | +0.025/0 | M6-20*4pcs | |
| 35 | 44 | 20, 25, 30, 35, 40, 45 | 69 | 56 | 44 | ||||||||
| 40 | +0.05/+0.025 | 50 | +0.03/+0.011 | 25, 30, 35, 40, 45 | 82 | 66 | 14 | 9 | 5.2 | 10 | 50 | M8-25*4pcs | |
| 50 | 62 | 30, 35, 40, 45 | 94 | 78 | 62 | +0.03/0 |
Industry Applications
- Automotive Industry
- Injection Molding Machinery
- Heavy Machinery
- General Industrial Machinery
- Automation Equipment
- Stamping Dies
