SHFZ Shoulder Type Oilless Bushing (ID 6-30mm)

Self-Lubricating Wear-Resistant Flanged Bronze Bearing

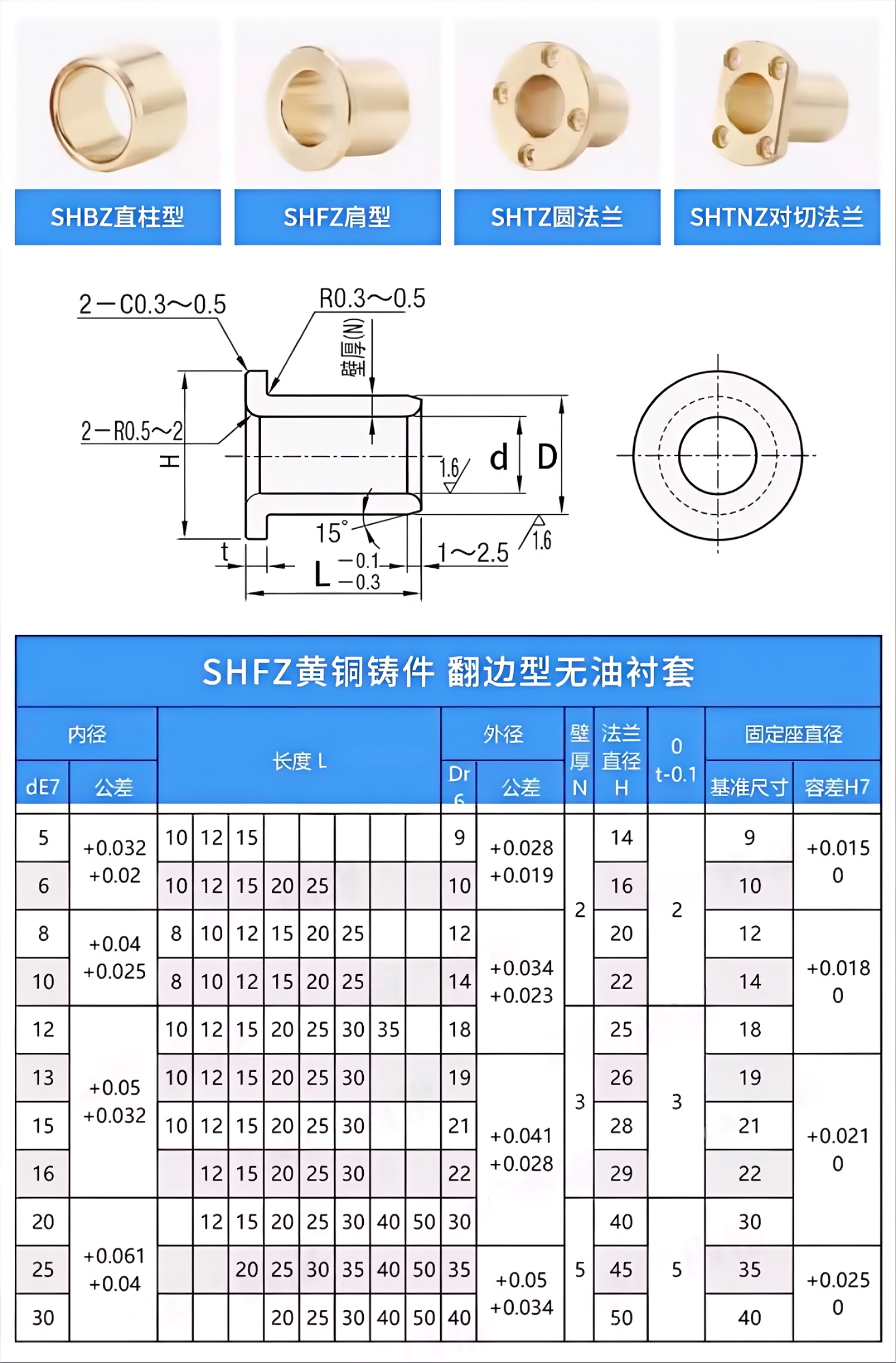

Technical diagram and specifications for SHFZ Shoulder Type Oilless Bronze Bushing — Complete technical chart for SHFZ Shoulder Type Oilless Bushings

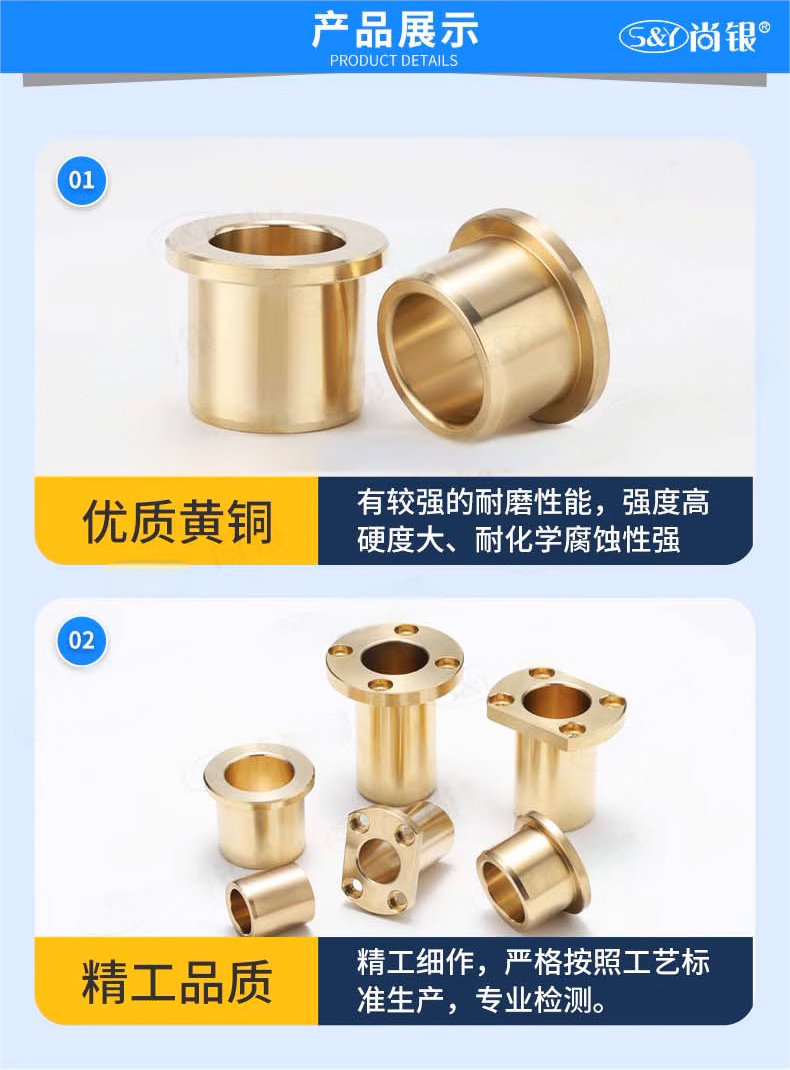

Close-up of SHFZ flanged oilless bushings showing the high-quality bronze alloy casting — SHFZ brass castings, flanged oil-free bushings

Product Overview

The SHFZ Series of shoulder (flanged) oilless bushings are high-performance, self-lubricating bearings designed for high-load, low-speed applications where regular maintenance is difficult or impossible. Manufactured from a high-quality, centrifugally cast bronze alloy base, these bushings are embedded with a specially formulated solid lubricant. The integrated flange (shoulder) design not only provides excellent radial support but also handles axial thrust, serving as a locator and wear surface. This makes the SHFZ bushing an ideal, maintenance-free solution for long-life performance.

Key Features

Completely Self-Lubricating: The embedded solid lubricant forms a durable lubricating film during operation, eliminating the need for oil or grease. This significantly reduces maintenance costs and prevents environmental contamination.
Superior Wear Resistance: The high-strength bronze alloy base offers exceptional load-carrying capacity and impact resistance, ensuring a long service life even under heavy loads.
Integrated Shoulder Design: The flange handles both radial and axial loads simultaneously, simplifying mechanical designs and providing reliable axial positioning.
High-Precision Tolerances: Manufactured to strict industry standards with an inner diameter tolerance of dE7, and outer/seating diameter tolerances of Dr/H7, ensuring a precise fit and stable operation.
Wide Temperature Range: Performs reliably across a broad range of operating temperatures, making it suitable for various demanding industrial environments.
Wide Range of Sizes: Available in standard sizes with inner diameters from 6mm to 30mm. Custom dimensions are available upon request to meet specific application needs.

Technical Specifications

Below are the standard dimensional specifications for the SHFZ Series of shoulder oilless bushings. Please select the appropriate model based on your design requirements.

Unit: Millimeters (mm)

Inner Dia. (d)	Tolerance	Length (L)	Outer Dia. (Dr)	Tolerance	Wall (N)	Flange Dia. (H)	Flange Thick. (t)	Seating Dia.	Tolerance
6	+0.032 / +0.02	10, 12, 15, 20, 25	10	+0.028 / +0.019	2	16	2	10	+0.015 / 0
8	+0.04 / +0.025	8, 10, 12, 15, 20, 25	12		2	20	2	12
10		8, 10, 12, 15, 20, 25	14	+0.034 / +0.023	2	22	2	14	+0.018 / 0
12		10, 12, 15, 20, 25, 30, 35	18		3	25	3	18
13	+0.05 / +0.032	10, 12, 15, 20, 25, 30	19		3	26	3	19
15		10, 12, 15, 20, 25, 30	21	+0.041 / +0.028	3	28	3	21	+0.021 / 0
16		12, 15, 20, 25, 30	22		3	29	3	22
20	+0.061 / +0.04	12, 15, 20, 25, 30, 40, 50	30		5	40	5	30
25		20, 25, 30, 35, 40, 50	35	+0.05 / +0.034	5	45	5	35	+0.025 / 0
30		20, 25, 30, 40, 50	40		5	50	5	40

Note: For lengths or other custom dimensions not listed in the table, please feel free to contact us.

Typical Applications

Molding & Die Industry: Guide posts, guide bushings, and ejector pin systems in injection molds.
Automotive Industry: Suspension systems, door hinges, steering knuckles, and more.
Construction Machinery: Pivot joints and hydraulic cylinder eyes on excavators and loaders.
Automation & Robotics: Robotic arms, conveyor rollers, and precision motion systems.
Valves & Pumps: Support bearings for valve stems and pump shafts.
Metallurgical & Mining Equipment: Suitable for high-temperature and heavy-load conditions.

How to Order

Please identify the required Inner Diameter (d), Outer Diameter (Dr), and Length (L) from the technical chart above. Contact our sales team for a quote, technical support, or to discuss your custom requirements. We look forward to working with you!
